Modal Dialog Interactions

Modal dialog interactions are a new Discord API feature that allow you to have pop-up windows which prompt the user to input information. Once the user has filled in this information, your program will receive an on_form_submit event which will contain the data which was input. You must use a slash command interaction response to submit your modal form data to Discord, via the on_interaction_create event. From here calling the dialog method of the interaction_create_t event object will trigger the dialog to appear.

Each dialog box may have up to five rows of input fields. The example below demonstrates a simple setup with just one text input:

#include <dpp/dpp.h>
#include <iostream>

int main(int argc, char const *argv[])
{
    dpp::cluster bot("token");

    bot.on_ready([&](const dpp::ready_t & event) {
        /* Create a slash command and register it as a global command */
        dpp::slashcommand newcommand;
        newcommand.set_name("dialog").set_description("Make a modal dialog box").set_application_id(bot.me.id);
        bot.global_command_create(newcommand);
    });

    bot.on_interaction_create([&bot](const dpp::interaction_create_t & event) {
        if (event.command.type == dpp::it_application_command) {
            dpp::command_interaction cmd_data = std::get<dpp::command_interaction>(event.command.data);
            /* Check for our /dialog command */
            if (cmd_data.name == "dialog") {
                /* Instantiate an interaction_modal_response object */
                dpp::interaction_modal_response modal("my_modal", "Please enter stuff");
                /* Add a text component */
                modal.add_component(
                    dpp::component().
                    set_label("Type rammel").
                    set_id("field_id").
                    set_type(dpp::cot_text).
                    set_placeholder("gumf").
                    set_min_length(1).
                    set_max_length(2000).
                    set_text_style(dpp::text_paragraph)
                );
                /* Trigger the dialog box. All dialog boxes are ephemeral */
                event.dialog(modal);
            }
        }
    });

    /* This event handles form submission for the modal dialog we create above */
    bot.on_form_submit([&](const dpp::form_submit_t & event) {
        /* For this simple example we know the first element of the first row ([0][0]) is value type string.
         * In the real world it may not be safe to make such assumptions!
         */
        std::string v = std::get<std::string>(event.components[0].components[0].value);
        dpp::message m;
        m.set_content("You entered: " + v).set_flags(dpp::m_ephemeral);
        /* Emit a reply. Form submission is still an interaction and must generate some form of reply! */
        event.reply(dpp::ir_channel_message_with_source, m);
    });

    /* Budget brand logger */
    bot.on_log([&](const dpp::log_t & log) {
        std::cout << log.message << "\n";
    });

    /* Start bot */
    bot.start(false);
    return 0;
}

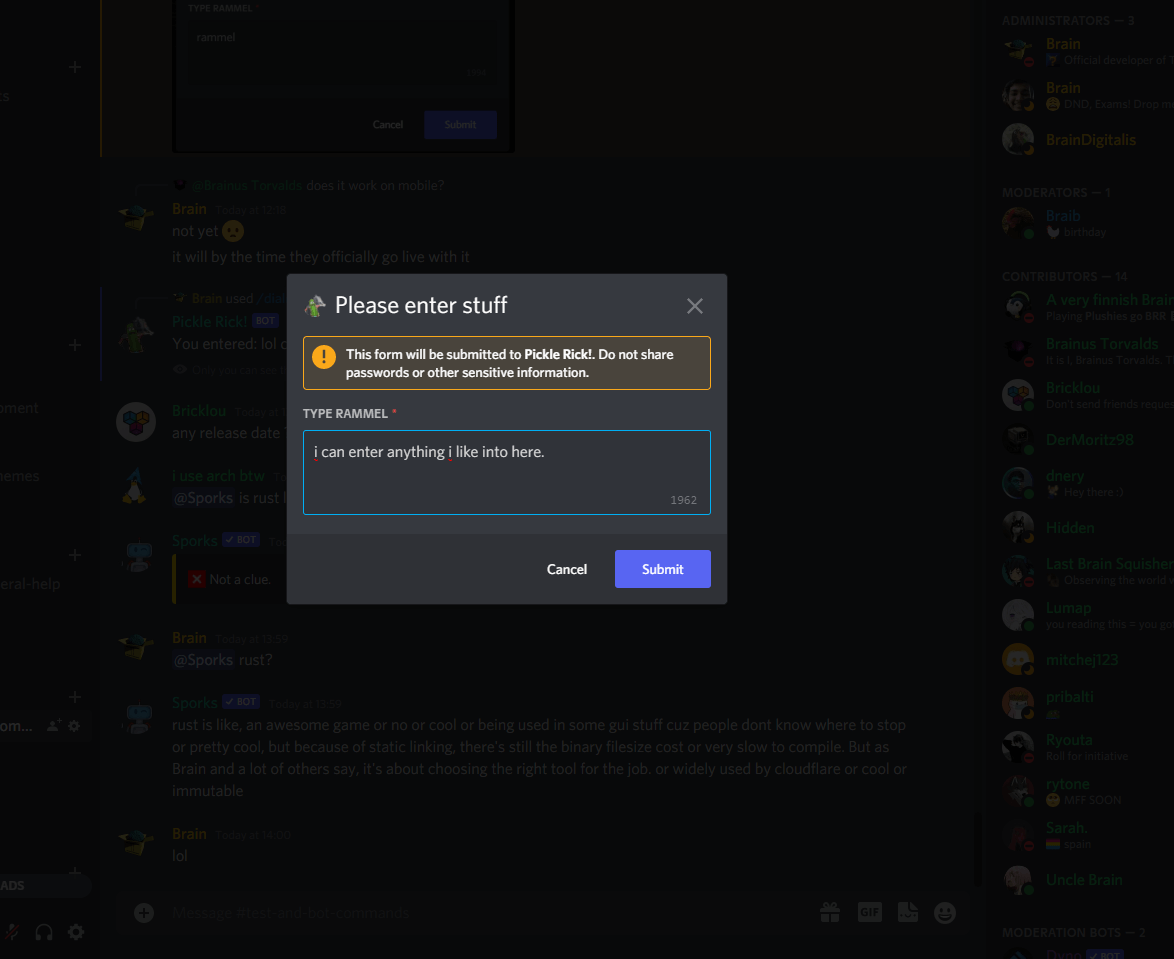

If you compile and run this program and wait for the global command to register, typing /dialog will present you with a dialog box like the one below:
