Modal Dialog Interactions

Modal dialog interactions are a new Discord API feature that allow you to have pop-up windows which prompt the user to input information. Once the user has filled in this information, your program will receive an on_form_submit event which will contain the data which was input. You must use a slash command interaction response to submit your modal form data to Discord, via the on_interaction_create event. From here calling the dialog method of the interaction_create_t event object will trigger the dialog to appear.

Warning
This feature is currently in a closed beta, and requires whitelisting of your application by Discord. These documents and any library methods associated with this feature are subject to change until the feature is officially announced for general use!

Each dialog box may have up to five rows of input fields. The example below demonstrates a simple setup with just one text input:

#include <dpp/dpp.h>
#include <iostream>
int main(int argc, char const *argv[])
{
dpp::cluster bot("token");
bot.on_ready([&](const dpp::ready_t & event) {
/* Create a slash command and register it as a global command */
dpp::slashcommand newcommand;
newcommand.set_name("dialog").set_description("Make a modal dialog box").set_application_id(bot.me.id);
bot.global_command_create(newcommand);
});
bot.on_interaction_create([&bot](const dpp::interaction_create_t & event) {
dpp::command_interaction cmd_data = std::get<dpp::command_interaction>(event.command.data);
/* Check for our /dialog command */
if (cmd_data.name == "dialog") {
/* Instantiate an interaction_modal_response object */
dpp::interaction_modal_response modal("my_modal", "Please enter stuff");
/* Add a text component */
modal.add_component(
dpp::component().
set_label("Type rammel").
set_id("field_id").
set_type(dpp::cot_text).
set_placeholder("gumf").
set_min_length(1).
set_max_length(2000).
set_text_style(dpp::text_paragraph)
);
/* Trigger the dialog box. All dialog boxes are ephemeral */
event.dialog(modal);
}
}
});
/* This event handles form submission for the modal dialog we create above */
bot.on_form_submit([&](const dpp::form_submit_t & event) {
/* For this simple example we know the first element of the first row ([0][0]) is value type string.
* In the real world it may not be safe to make such assumptions!
*/
std::string v = std::get<std::string>(event.components[0].components[0].value);
m.set_content("You entered: " + v).set_flags(dpp::m_ephemeral);
/* Emit a reply. Form submission is still an interaction and must generate some form of reply! */
});
/* Budget brand logger */
bot.on_log([&](const dpp::log_t & log) {
std::cout << log.message << "\n";
});
/* Start bot */
bot.start(false);
return 0;
}
The cluster class represents a group of shards and a command queue for sending and receiving commands...
Definition: cluster.h:384
uint8_t type
the type of interaction
Definition: slashcommand.h:559
Represents an application command, created by your bot either globally, or on a guild.
Definition: slashcommand.h:661
slashcommand & set_name(const std::string &n)
Set the name of the command.
@ m_ephemeral
this message is only visible to the user who invoked the Interaction
Definition: message.h:900
@ it_application_command
application command (slash command)
Definition: slashcommand.h:455
@ ir_channel_message_with_source
respond to an interaction with a message
Definition: slashcommand.h:218
Definition: dispatcher.h:382
std::vector< component > components
Message components for form reply.
Definition: dispatcher.h:403
Create interaction.
Definition: dispatcher.h:259
interaction command
command interaction
Definition: dispatcher.h:351
Log messages.
Definition: dispatcher.h:92
std::string message
Definition: dispatcher.h:102
Represents messages sent and received on Discord.
Definition: message.h:1010
message & set_content(const std::string &c)
Set the message content.
message & set_flags(uint8_t f)
Set the flags.
Session ready.
Definition: dispatcher.h:552

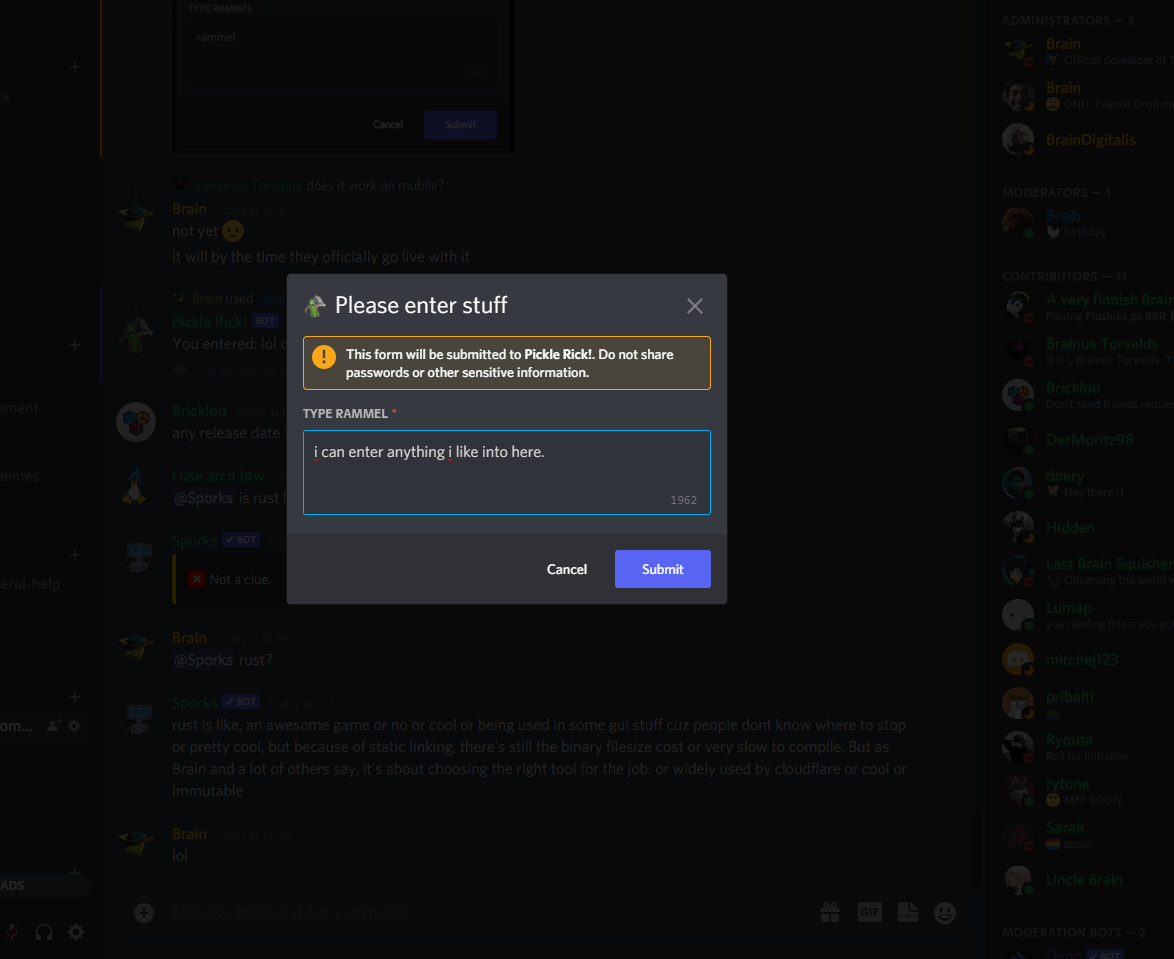

If you compile and run this program and wait for the global command to register, typing /dialog will present you with a dialog box like the one below:
